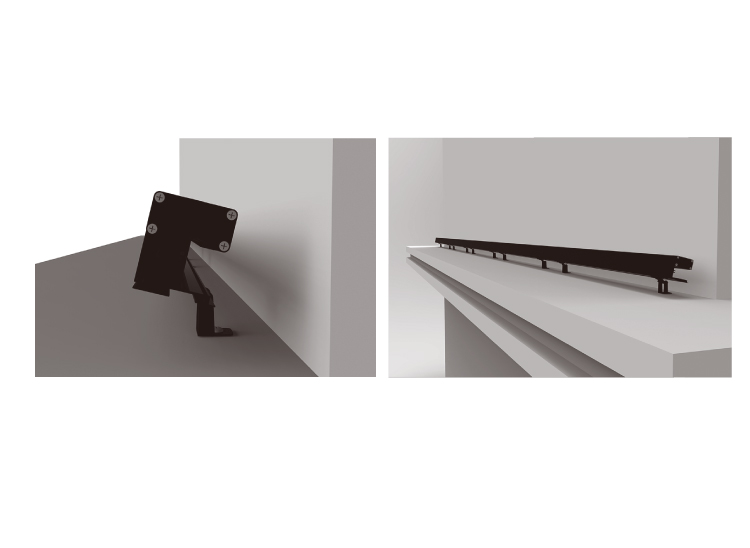

This led wall washer enjoys creative and small and beautiful shape design. The aluminum profile color can be designed by customer preferences and it’s high cost effective choice. It has various applications like in-ground, exterior wall, swimming pool, steps of garden park, guardrail of bridge, building wall etc. The lamp is designed with on-off function and can work well in outdoor environment.
Specification：

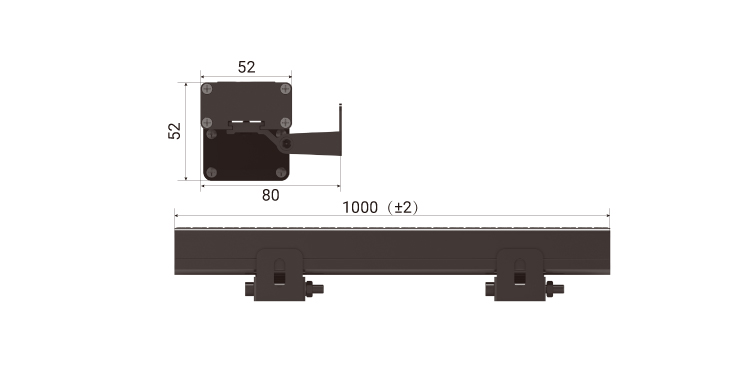

| Model No： | YD-XQ-52A | Lighting Fixture Size： | 1000×52×55(mm) |

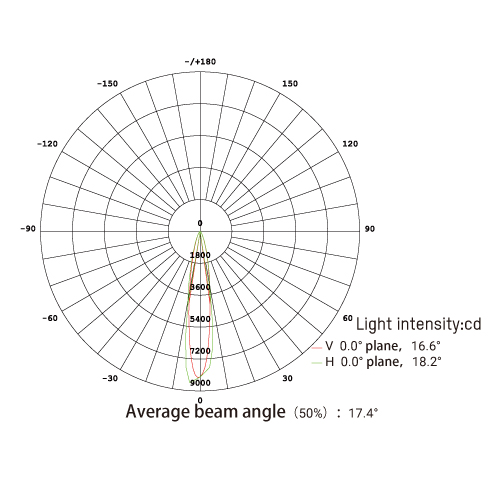

| Luminous Angle： | Single color: 8°（Less than 24pcs）、15°、30°、45° Full color： 25° | Outer shell Material： | Aluminum alloy |
| Gray scale： | 16bit | Weight： | 1440g/set |
| LED Color： | B+W/RGB/RGBW/R/G/B/W… | Control Method： | ON/OFF、DMX512 |
| Protect Grade： | IP68 | Voltage： | DC36V |
| salt spray test： | Anti-salt spray | Power： | 18W、24W、27W、36W |
| Outer Shell Fireproof Grade： | V-0 | Environment： | Outdoor |
| Electrical Safety Class： | Category III | Environment Temperature： | -40℃~+55℃ |
| Safety Certificate： | CE；FCC；CB；BIS | Storage temperature： | -40°C~+80°C |
ProductSpecifications And Parameters：
| No. | Control Method： | LED color： | Voltage： | Power： | Standard Configuration： | Luminous Angle： |
| 01 | DMX512 | R/G/B/W… | DC36V | 24W | 24pcs per series | 8°、15°、30°、45° |
| 02 | DMX512 | B+W | DC36V | 24W | 12+12pcs per series | 8°、15°、30°、45° |
| 03 | DMX512 | BGBW | DC36V | 36W | 18pcs per series | 25° |
| 04 | DMX512 | RGB | DC36V | 24W | 18pcs per series | 25° |
| 05 | ON/OFF | R/G/B/W… | DC36V | 18W | 18pcs per series | 8°、15°、30°、45° |
| 06 | ON/OFF | R/G/B/W… | DC36V | 24W | 24pcs per series | 8°、15°、30°、45° |
| 07 | ON/OFF | R/G/B/W… | DC36V | 36W | 27pcs per series | 15°、30°、45° |
