Specification：

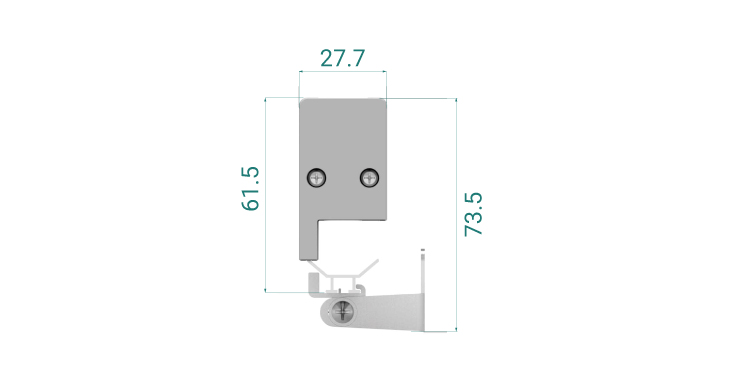

| Model No： | OUGE-XQY-14A | Lighting Fixture Size： | 1003x73.5x27.7(mm) |
| Luminous Angle： | 20x80° | Outer shell Material： | Aluminum alloy |
| LED Color： | RGB/RGB+W/R/G/B/W… | Weight： | 680g/set |
| Protect Grade： | IP68 | Control Method： | ON/OFF、SPI、DMX512 |
| Impact resistance： | K10 | Voltage： | DC24V |
| salt spray test： | Anti-salt spray | Power： | 10W、12W、15W |
| Outer Shell Fireproof Grade： | V-0 | Environment： | Outdoor |
| Electrical Safety Class： | Category III | Environment Temperature： | -40℃~+55℃ |
| Safety Certificate： | CE；FCC；CB；BIS | Average lifespan： | 50000h |
ProductSpecifications And Parameters：
| No. | Control Method： | LED color： | Gray scale： | Voltage： | Power： | Standard Configuration： | Luminous Angle： |
| 01 | ON/OFF | R/G/B/W… | / | DC24V | 10W | 72pcs per series | 20x80° |
| 02 | ON/OFF | R/G/B/W… | / | DC24V | 12W | 96pcs per series | 20x80° |
| 03 | SPI | RGB | 8bit | DC24V | 12W | 48pcs per series | 30x80° |
| 04 | DMX512 | RGB+W | 16bit | DC24V | 15W | 48+48pcs per series | 30x80° |
