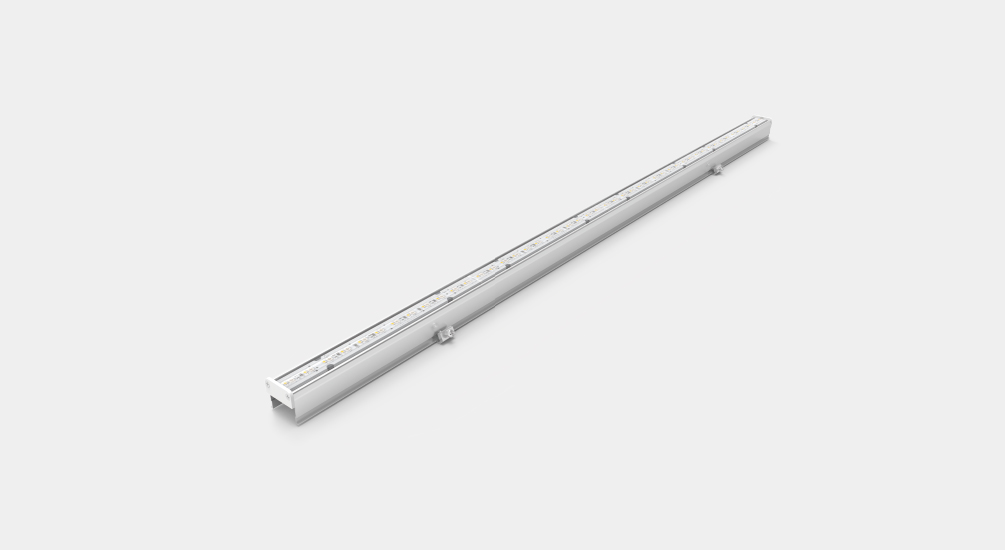

YD-XT-25A LED Linear Light

Product Model:YD-XT-25A

Description:This aluminum led linear lamp is inner built in XT-25B led linear light source. The aluminum profile and wire groove is integrated design and no need to add extra wire groove. By adopting new style fixture, the installation of the led linear light is very convenient and the lamp can keep excellent and high grade daytime appearance. The lamp has several designs like static single color, RGB etc. And can create dynamic lighting effects by cooperating with control system.

Characteristic:

Product Consultation Data Download

Home >Product Center > LED Linear Light > YD-XT-25A LED Linear Light

Specification

Product Model：

YD-XT-25A

Size：

1000×31×46(mm)

Beam Angle：

110°

Shell Material：

Aluminum Alloy

LED color：

B+W/RGB/RGB+W/R/G/B/W..

weight：

802g/set

Electrical

Voltage ：

DC24V

Power：

7.5W、12W、15W

Control Method：

ON/OFF、DMX512

Security

Protection Grade：

IP68

Outer Shell Fireproof Grade：

V-0

Ultraviolet Test：

Anti-UV

Salt Spray Test：

Anti-salt spray

Working Temperature：

-40℃~+55℃

Configuration

Serial Number:	Serial Number:	Control Method：	Light Color：	Voltage：	Power：	Pixels quantity：	Control IC/m：
01	1	ON/OFF	R/G/B/W…	DC24V	7.5W	96pcs	/
02	2	DMX512	R/G/B/W…	DC24V	7.5W	96pcs	4
03	3	DMX512	B+W	DC24V	7.5W	48+48pcs	4
04	4	DMX512	RGB	DC24V	12W	48pcs	8
05	5	DMX512	RGB+W	DC24V	15W	48+48pcs	8

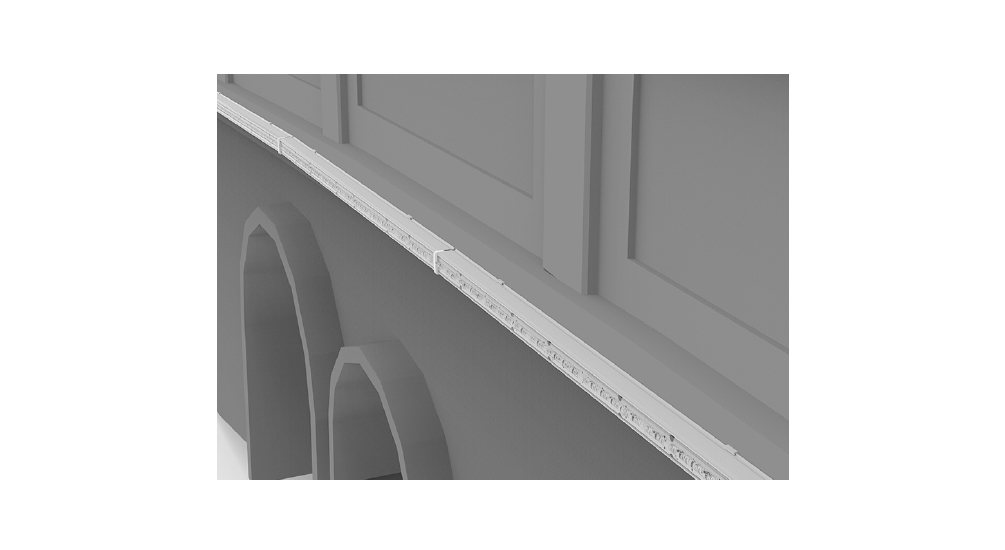

Installation

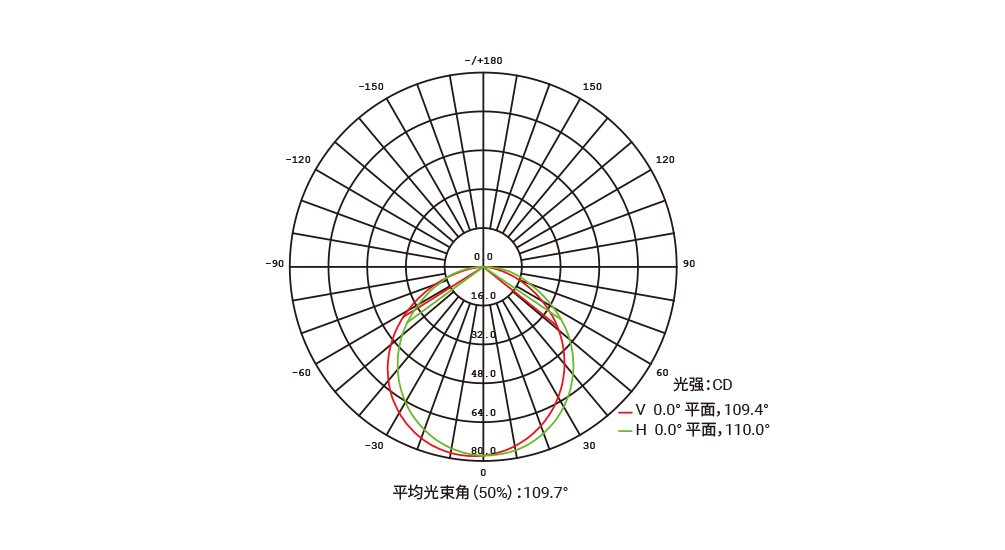

Luminosity Distribution

YD-XT-25A LED Linear Light

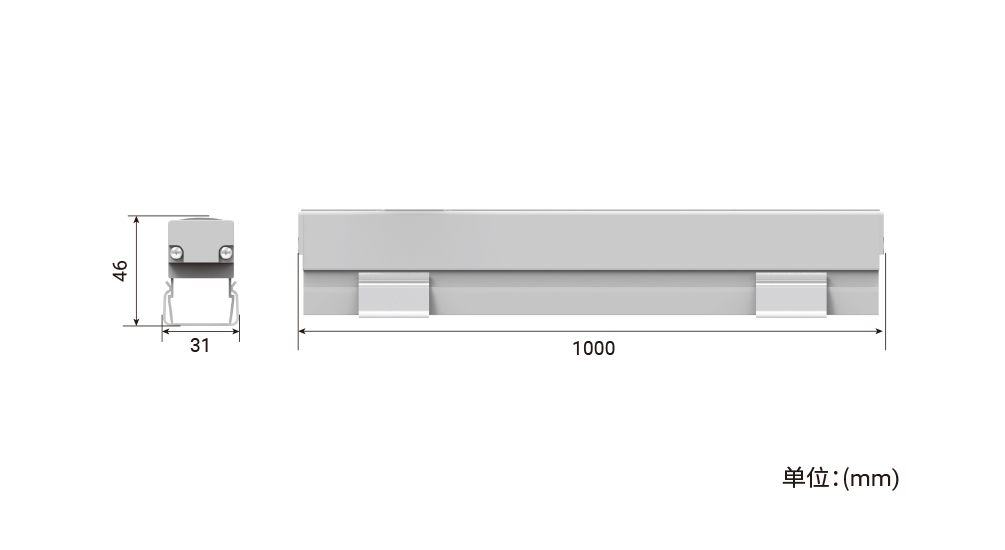

Product Size

YD-XT-25A LED Linear Light

Project Application

Landscape Dam, Yingtan

Dubai-ITP Publishing Group

Poly City Sales Department, Quanzhou

Related Products

YD-XT-15A LED Linear Light

YD-XT-15A LED Linear Light

power:7.5W、9W、12W、15W

YD-XT-15C LED Linear Light

YD-XT-15C LED Linear Light

power:7.5W、12W、15W

YD-XT-18A LED Linear Light

YD-XT-18A LED Linear Light

power:7.5W、9W、12W、15W

YD-XT-40A LED Linear Light

YD-XT-40A LED Linear Light

power:12W、15W、18W、24W
