YD-RT-13 (YB) Flat uniform flexible led strip lights-Hangzhou YD Illumination Co., Ltd

Description:Main Performance:• One-piece molding technology is used to prevent water vapor intrusion. Uniform light and anti-glare, the lamp body is flexible and can be shaped arbitrarily. Adopting Macromolecule polymer alloy materials, it has high mechanical strength. Waterproof side outlet allows for seamless splicing
Application Scene:It can be widely used in various fields such as urban landscape lighting, cultural and tourism lighting, garden lighting, ship lighting, interior decorative lighting, festival lighting, etc. It can be used for a long time in harsh environments such as indoors, outdoors, underground, underwater (seawater), etc.

Characteristic:

Product Consultation

Home >Product Center > Flat uniform flexible led strip lights > YD-RT-13 (YB) Flat uniform flexible led strip lights

Security

Protection Grade：

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification:

CE、FCC、BIS

Configuration

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	10W/m	W	ON/OFF	/	110°
02	DC24V	14W/m	RGB	SPI	8	110°
03	DC24V	10W/m	W	ON/OFF	/	110°
04	DC24V	7.5W/m	W	SPI	8	110°

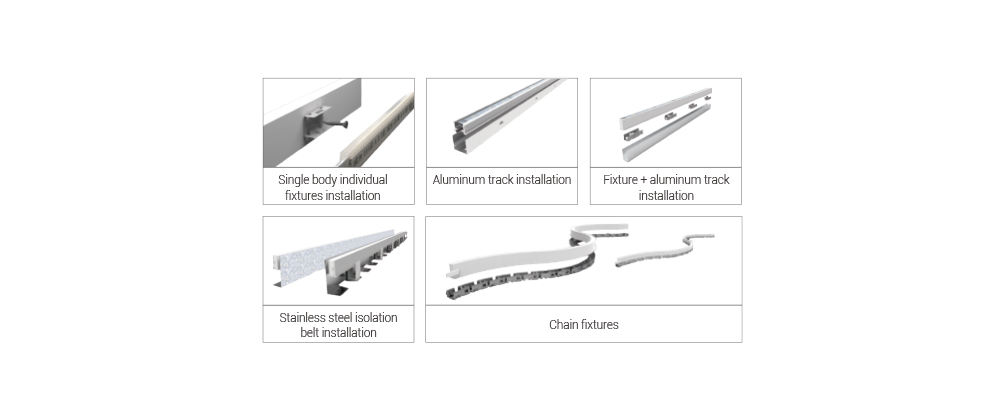

Installation

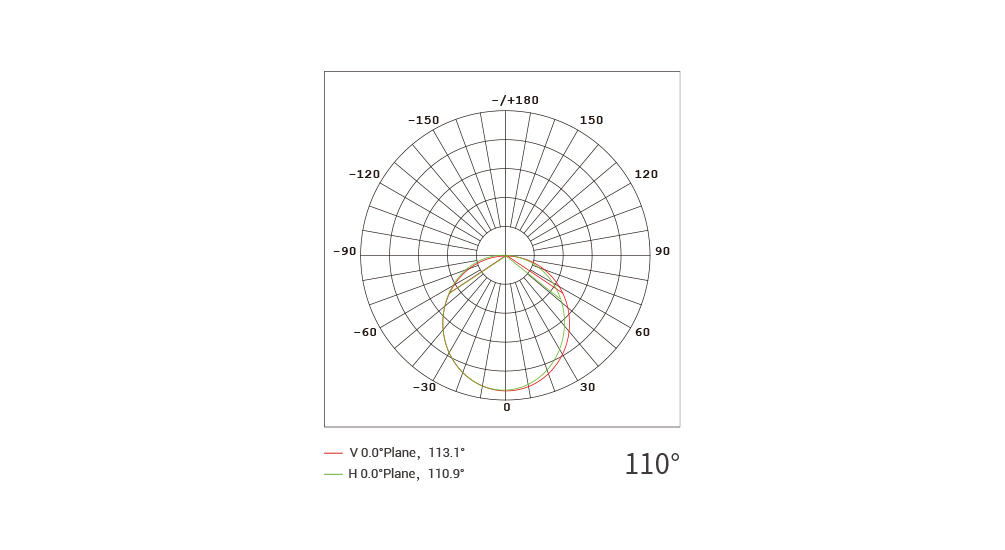

Luminosity Distribution

YD-RT-13 (YB) Flat uniform flexible led strip lights

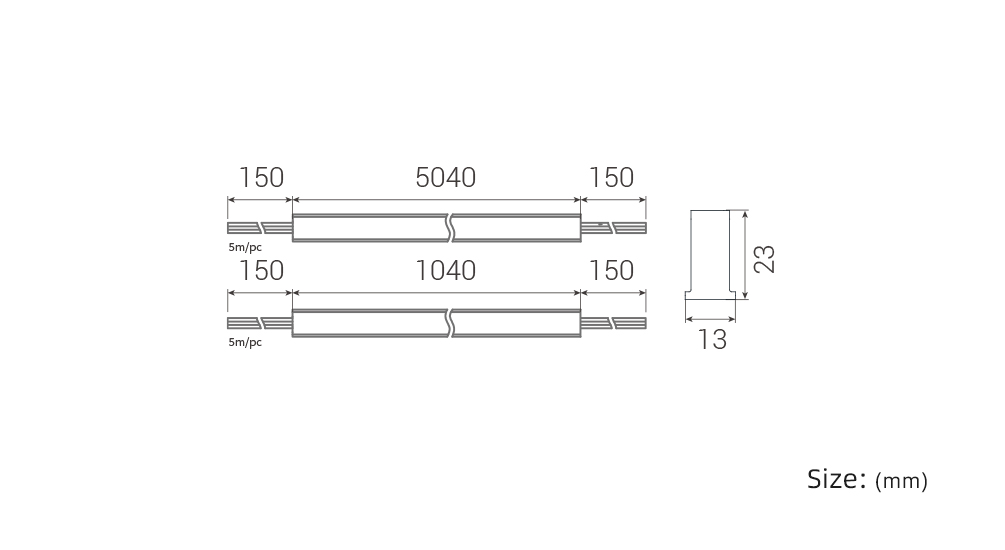

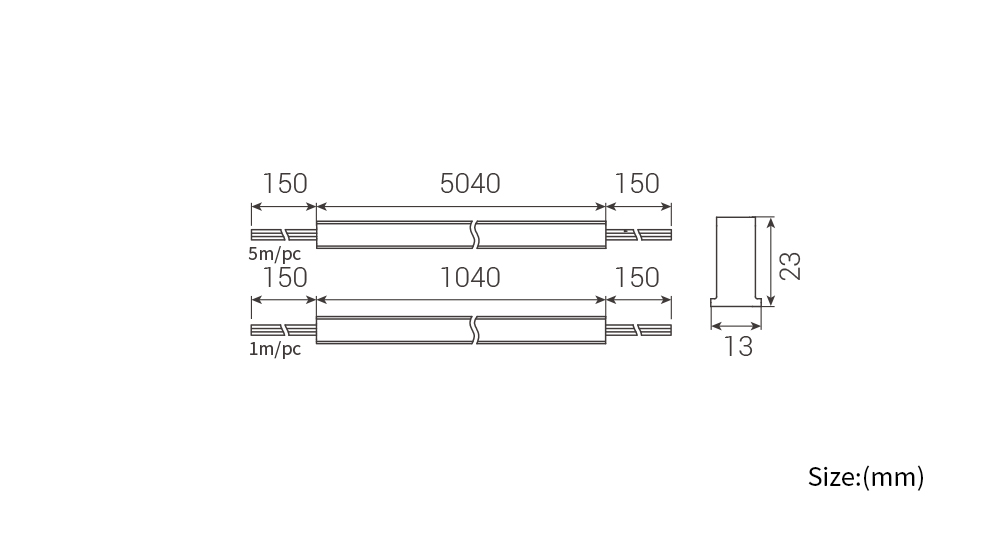

Product Size

Project Application

Huamei Golf Club ,Guangzhou
