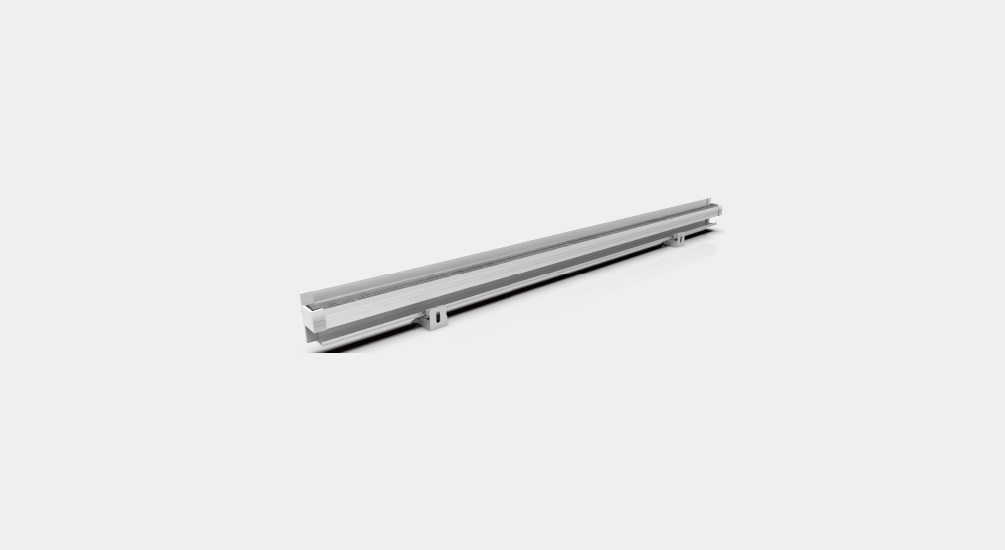

LED wall washer lights with cable trunkings YD-XQ-25C-Hangzhou YD Illumination Co., Ltd

Main Performance:• With advanced secondary optical design. • Adopting completely independent intellectual property rights of Macromolecule polymer alloy materials and double protection technology. • The lamps achieve outdoor permanent using standards with Highest Protection Grade IP68, Flame Retardant Grade V-0, UV and Anti-aging. • This series lamps achieves high light efficiency and intelligent control. • Can be used for a long time in harsh environments such as outdoor, underground, underwater (sea water). • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting
Mainly used in wall washing lighting on facade of large urban building, the contour outlining of urban overpass and bridge, swimming pool, park etc.

Application Scene: YD-XQ-25C

Characteristic:

Product Consultation

Features

Protection Grade:

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	7.5W	R\G\B\W...	DMX512	4	120°
02	DC24V	7.5W	B+W	DMX512	4	120°
03	DC24V	12W	RGB	DMX512	8	120°
04	DC24V	15W	RGBW	DMX512	8	120°
05	DC24V	7.5W	R\G\B\W...	ON/OFF	/	120°
