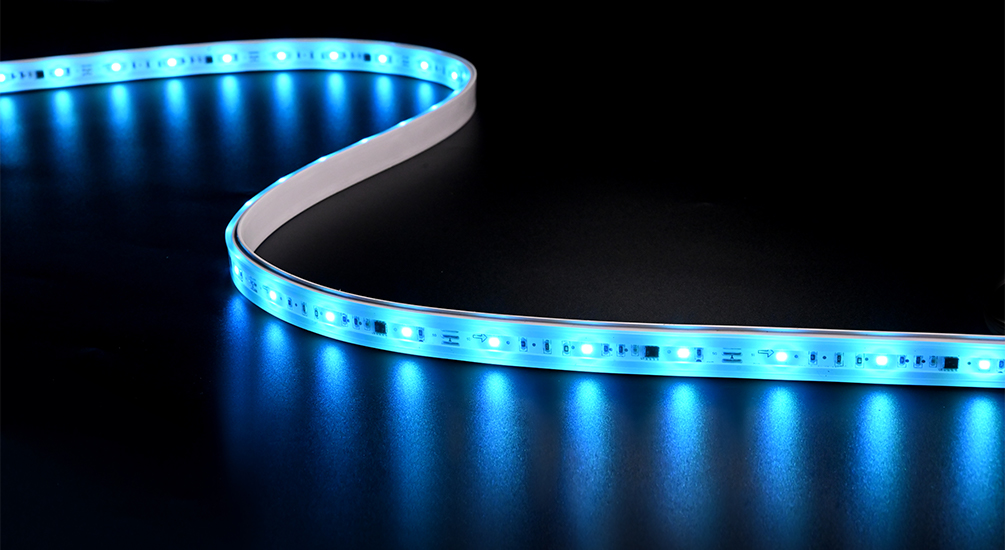

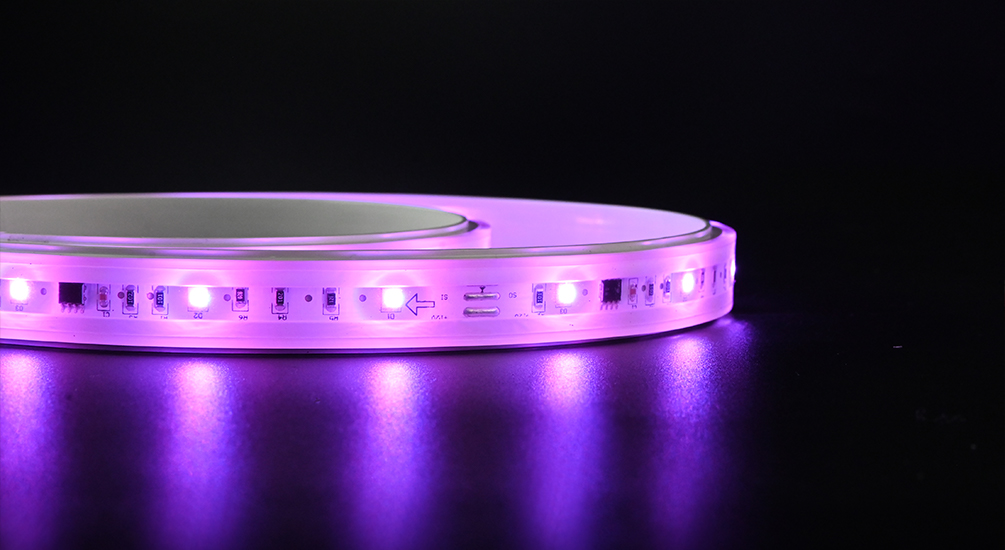

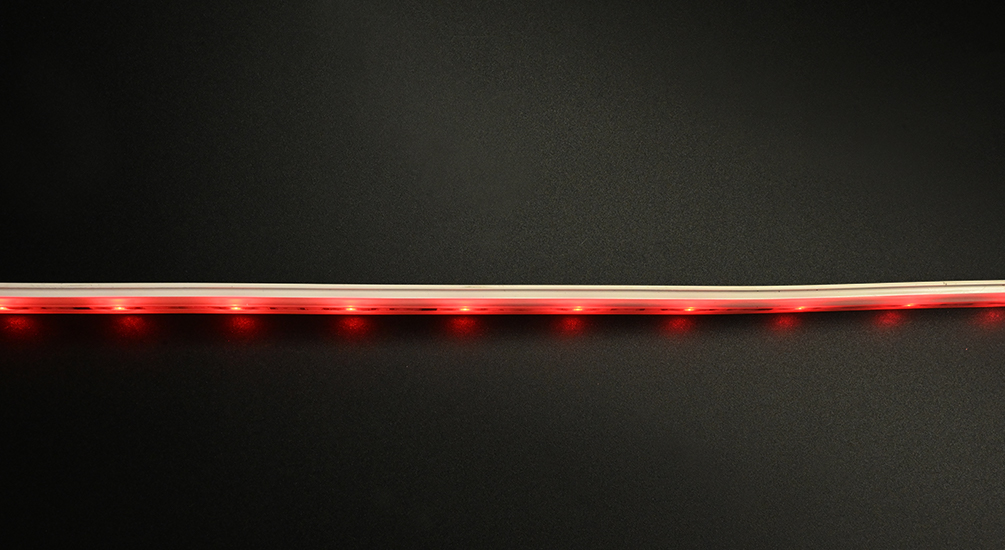

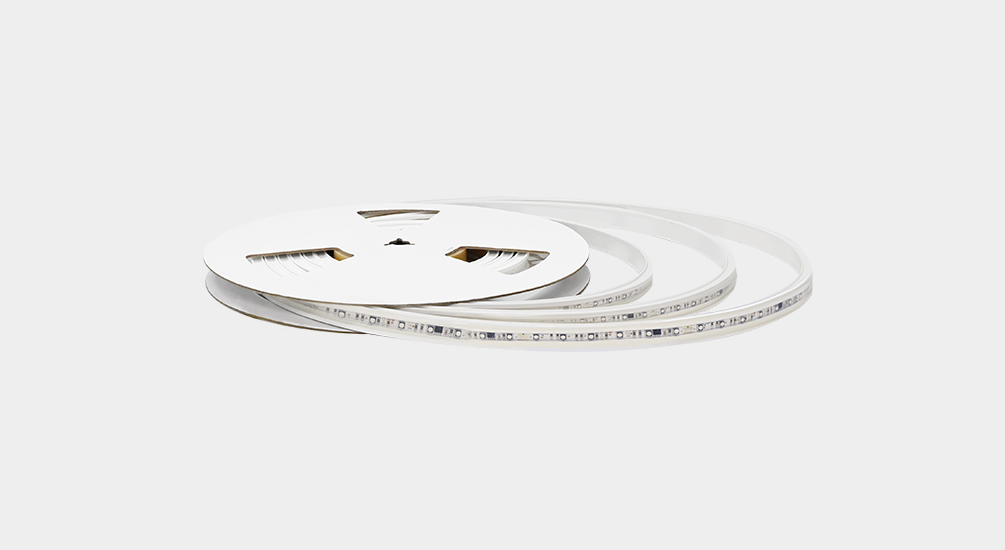

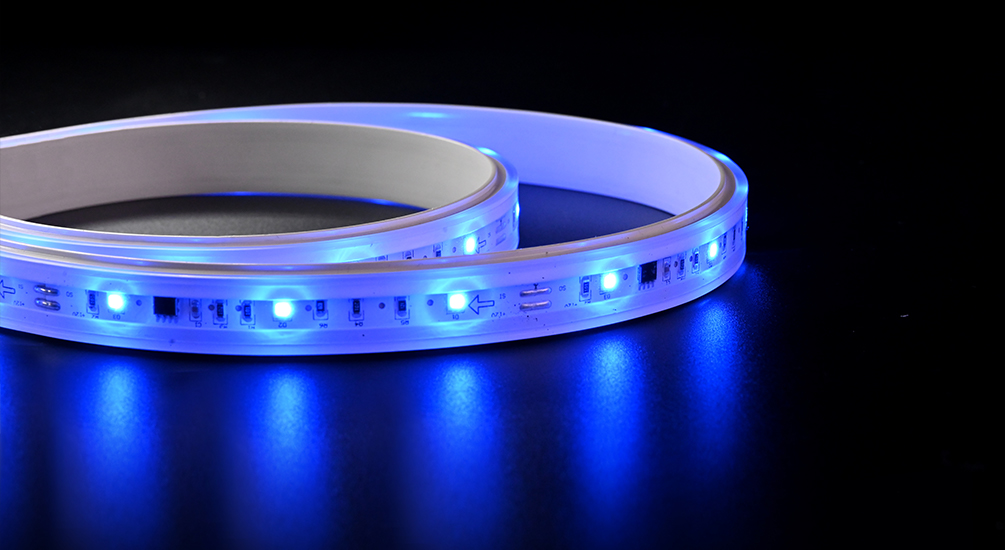

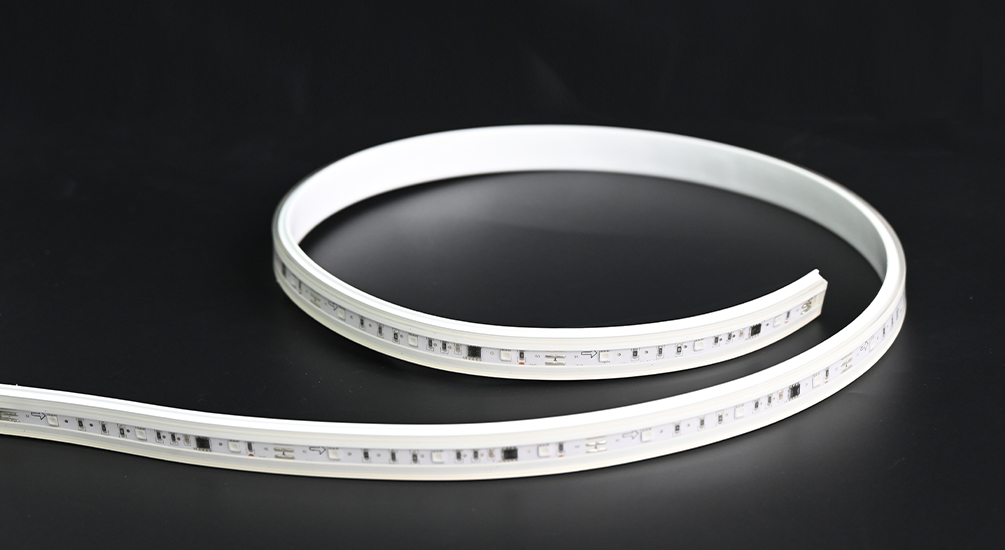

YD-RT18（YA1） High brightness flexible led strip lights
Product Model: YD-RT18（YA1）
Description:Main Performance: High light efficiency and wide illumination range. Easily bend and shape to adapt to various complex installation environments and shape requirements. It can be used in conjunction with various sensors and terminal devices such as mobile phones and computers to achieve different effects of human-light interaction Application Scene:It is mainly used for lighting of buildings, parks and scenic spots, and media screens. It can also be used to outline the contours of large buildings, bridges and overpasses at a distance.
Characteristic:
Product Consultation
Home >Product Center > High brightness flexible led strip lights > YD-RT18（YA1） High brightness flexible led strip lights
Specification
Protection Grade：
IP68
Flame Retardant Grade：
V-0
UV Grade：
Surface shows no apparent changes（GB/T 16422.3-2014 ）
Neutral Salt Spray：
48H
Anti-High And Low Temperature：
-40°C~+55°C / -40°F~+131°F
Product Certification:
CE、FCC、BIS
IK Grade：
IK10
Configuration
Serial Number: Voltage Power LED Color Control Method Pixel/m Beam Angle
01 DC12V 7.5W/m RGB SPI 8 120°
02 DC24V 114W/m RGB SPI 10 110°
03 DC24V 12W/m RGB SPI 8 110°
04 DC12V 7W/m RGB SPI 10 110°
05 DC24V 9W/m RGB SPI 6 110°
06 DC24V 10W/m RGB SPI 10 110°
07 DC24V 12W/m RGB DMX512 8 110°
08 DC24V 9W/m RGB DMX512 6 110°
09 DC24V 15W/m RGB+W SPI 8 110°
10 DC24V 12W/m RGB+W DMX512 6 110°
11 DC24V 15W/m RGB+W DMX512 8 110°
12 DC24V 7.5W/m W SPI 8 110°

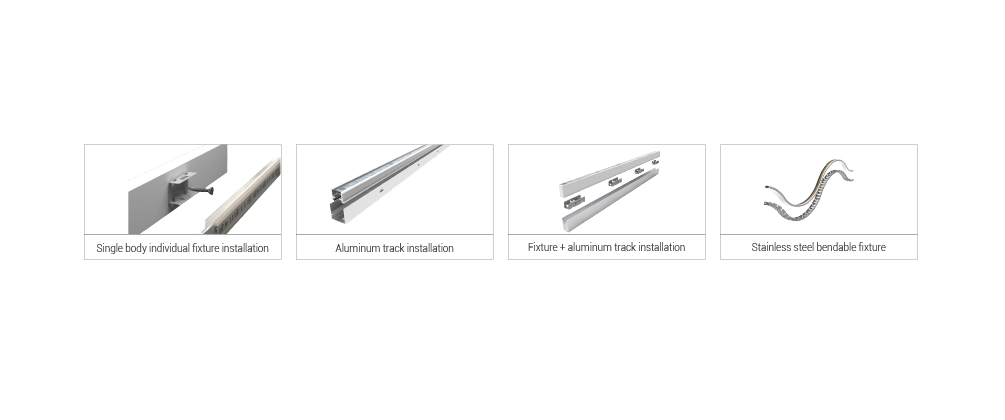

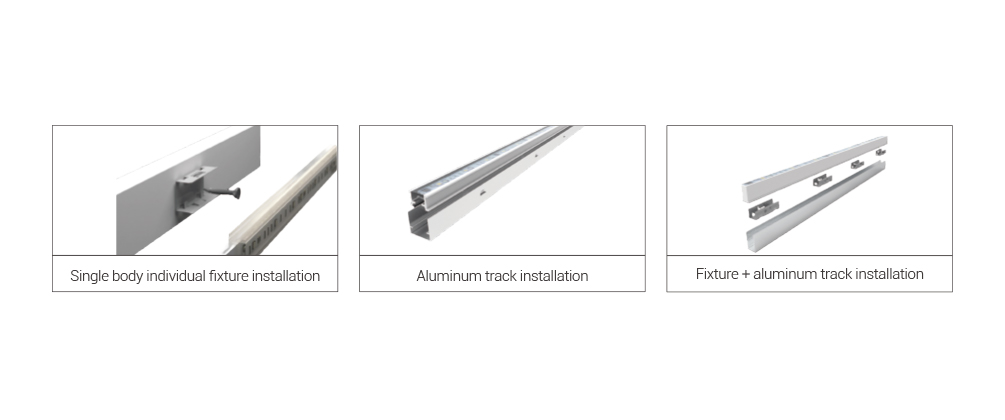

Installation

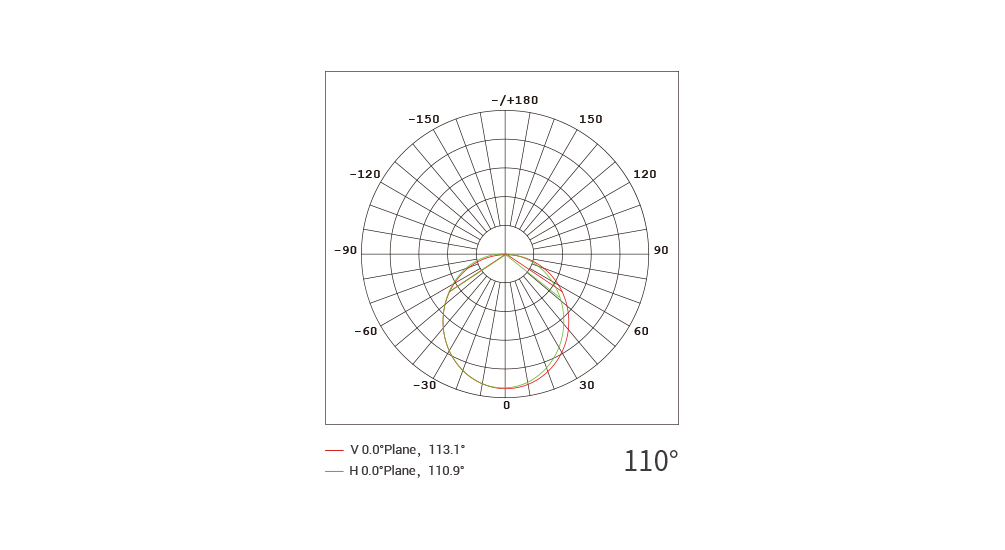

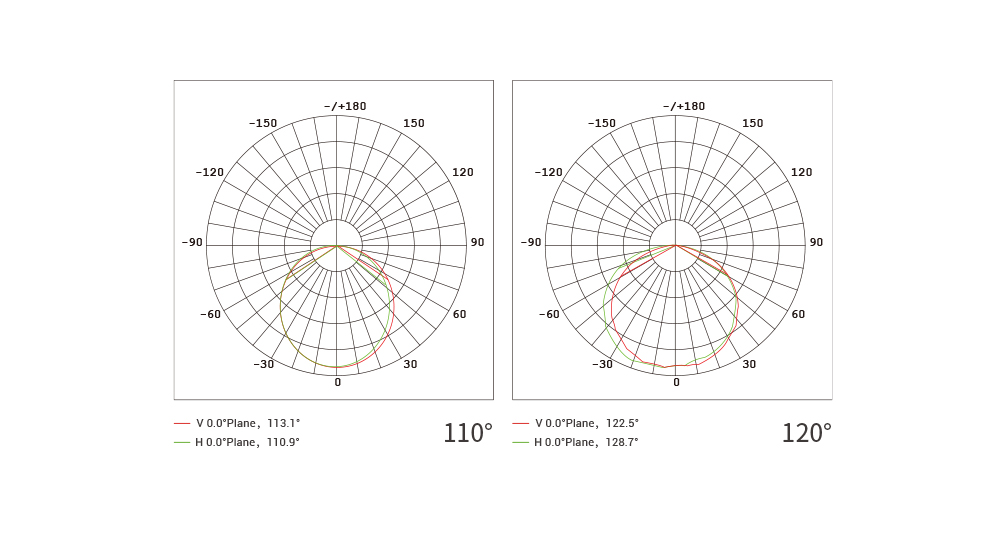

Luminosity Distribution
YD-RT18（YA1） High brightness flexible led strip lights

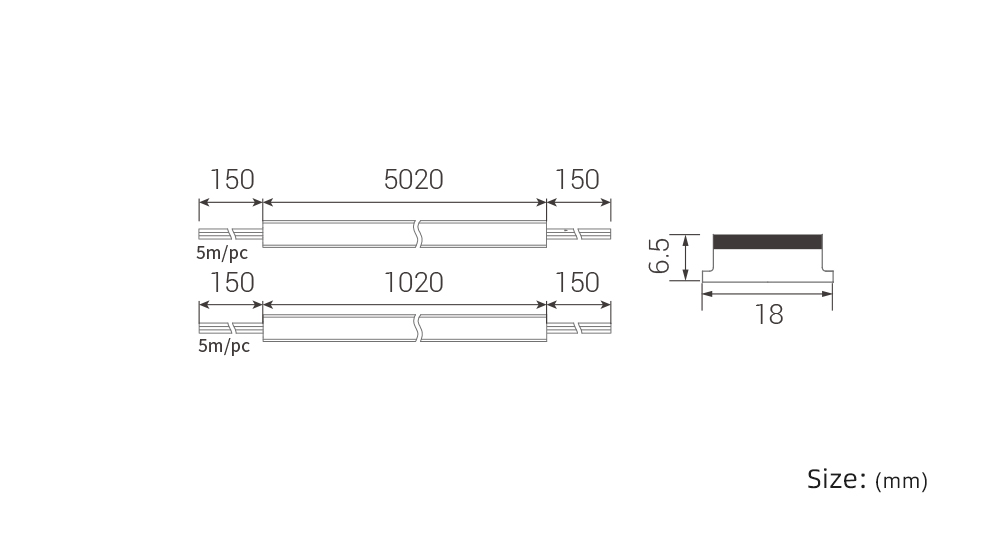

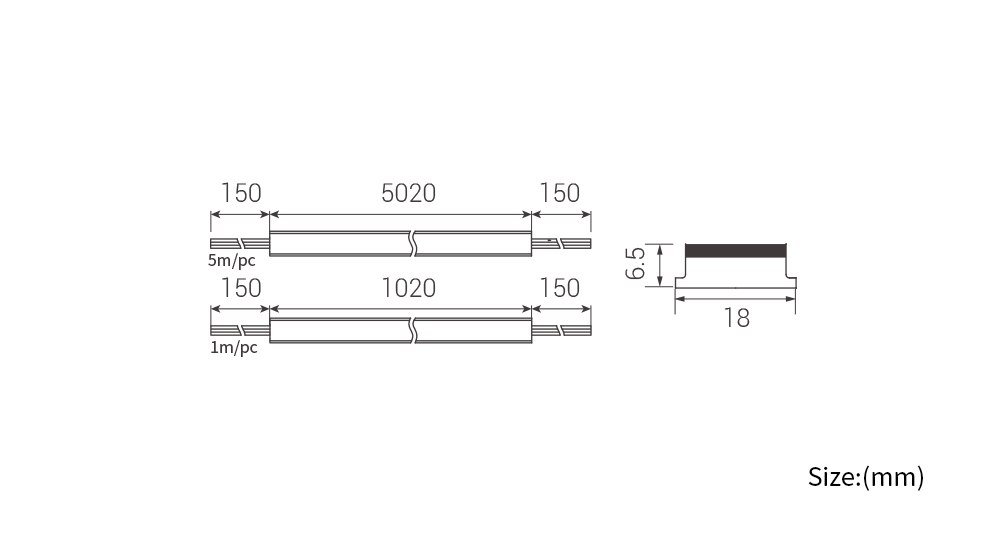

Product Size
YD-RT18（YA1） High brightness flexible led strip lights
