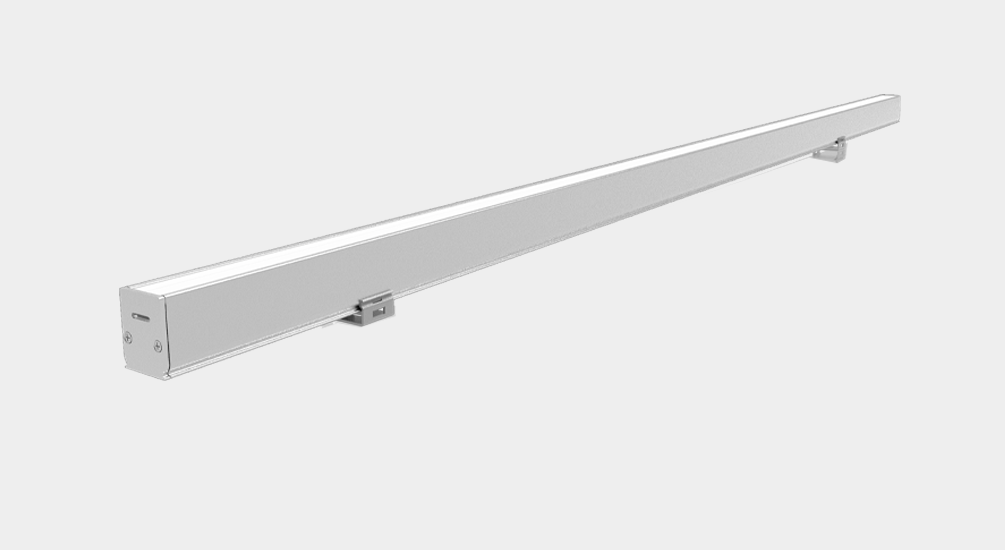

YD-XT22W(YB4) LED Linear Light

Main Performance:It adopts uniform light anti-glare design. It adopts Macromoledule polymer alloy materials and double protection technology with independent intellectual property rights. The protection level of the lamp reaches the highest IP68, the flame retardant level V-0, and anti-UV and the anti-aging performance reaches the requirements of stable and long time use in the outdoor. It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.

Application Scene:Mainly used for outlining the outline of high-rise buildings, elevated,bridges; parks, scenic spots, rivers and other occasions; can also be used to make curtain wall screens, translucent screens and other outdoor displays.

Characteristic:

Product Consultation

Home >Product Center > Uniform Linear Lights > YD-XT22W(YB4) LED Linear Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

Temperature： -40°C~+55°C / -40°F~+131°F

Product Certification:

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam angle
01	DC24V	12W	RGB	DMX512	8	110°

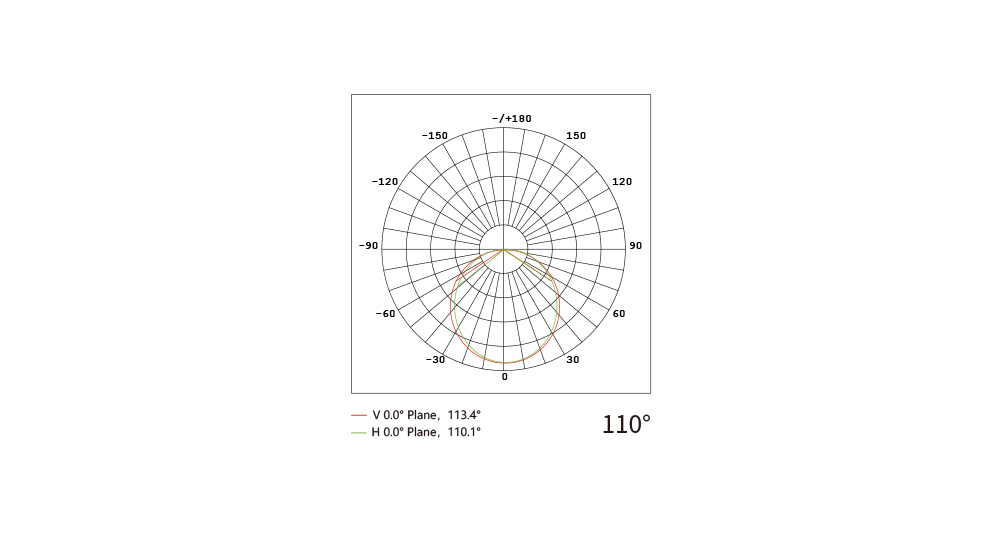

Luminosity Distribution

YD-XT22W(YB4) LED Linear Light

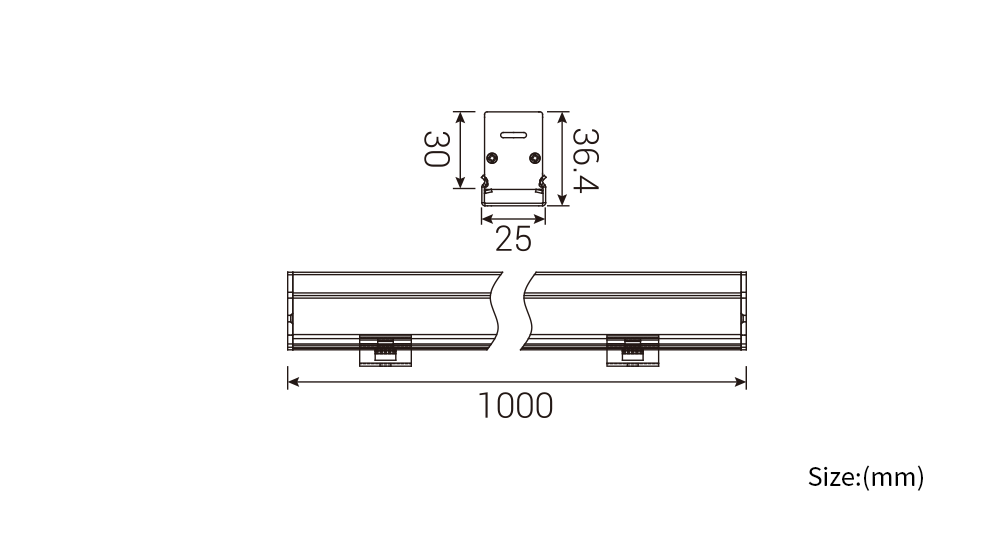

Product Size

YD-XT22W(YB4) LED Linear Light
