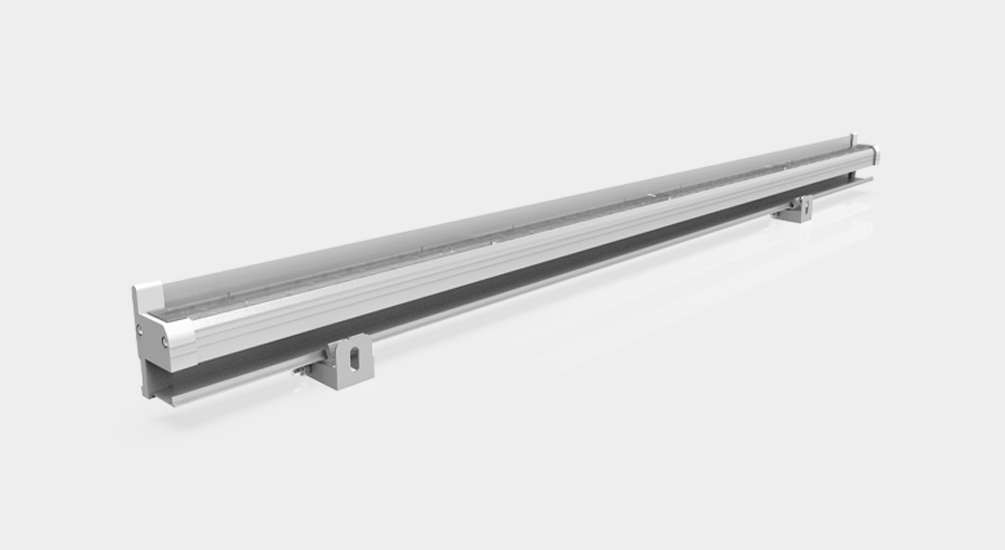

YD-XQ25W(YC) LED Wall Washer Lights-Hangzhou YD Illumination Co., Ltd

Main Performance:With advanced secondary optical design. • Adopting completely independent intellectual property rights of Macromolecule polymer alloy materials and double protection technology. • The lamps achieve outdoor permanent using standards with Highest Protection Grade IP68, Flame Retardant Grade V-0, UV and Anti-aging. • This series lamps achieves high light efficiency and intelligent control. • Can be used for a long time in harsh environments such as outdoor, underground, underwater (sea water). • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting

Application Scene:Mainly used in wall washing lighting on facade of large urban building, the contour outlining of urban overpass and bridge, swimming pool, park etc.

Characteristic:

Product Consultation

Home >Product Center > LED Wall Washer Lights > YD-XQ25W(YC) LED Wall Washer Lights

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam angle
01	DC24V	7.5W	R/G/B/W...	DMX512	8	120°
02	DC24V	12W	RGB	DMX512	8	120°
03	DC24V	15W	RGB+W	DMX512	8	120°
