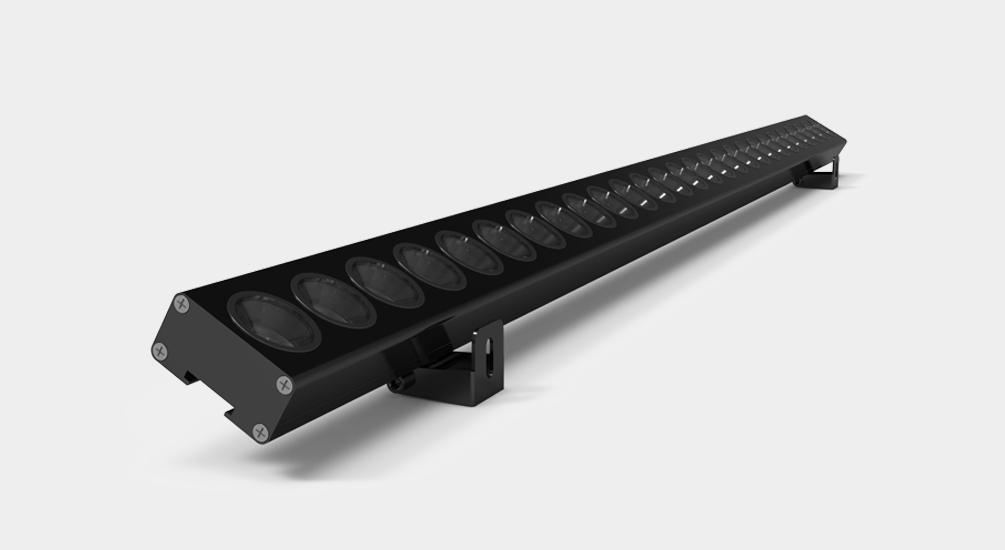

YD-XQ52W(ZA) High Power LED Wall Washer Light-Hangzhou YD Illumination Co., Ltd

Main Performance:• Built-in double protection high-power waterproof LED module light source with professional lens, effectively controlling light distribution. • Using nano-thermal conductive materials and double protection technology,with excellent heat dissipation performance. • The protection level of the lamp reaches the highest IP68, and the product has a long service life. • It has conventional, DC48V,RDM and constant power different series to meet the multiple requirements of outdoor lighting.

Application Scene:Large buildings, large bridge guardrails, overpasses, mountain lighting, tree projection, large sculptures, lighting setting, etc. and wall washing lighting.

Characteristic:

Product Consultation

Home >Product Center > High Power LED Wall Washer Lights > YD-XQ52W(ZA) High Power LED Wall Washer Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

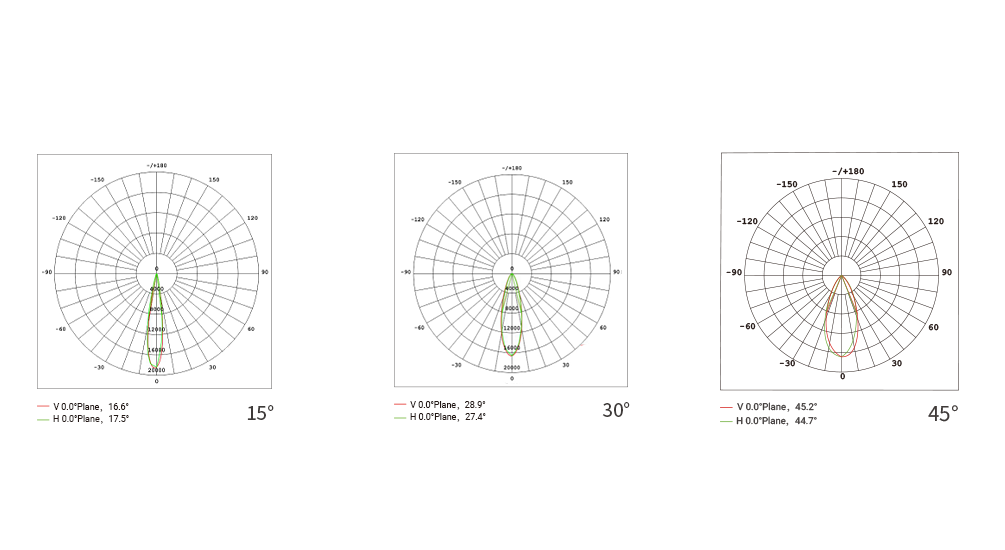

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam angle
01	DC24V	18W	W	ON/OFF	/	15°、30°、45°
02	DC36V	24W	W	ON/OFF	/	15°、30°、45°
03	DC24V	24W	W	ON/OFF	/	15°、30°、45°
