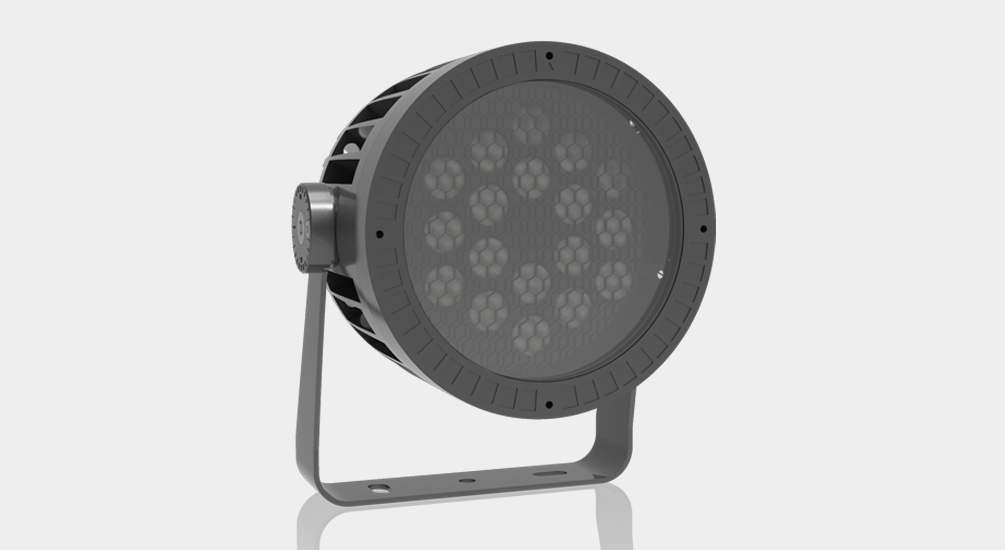

OUGE-DT160W(XA) Round LED Flood Light-Hangzhou YD Illumination Co., Ltd

Main Performance:The body is made of one-piece die-cast aluminum, with an anti-shock design both inside and out to prevent the lamp beads from falling off and the bracket from breaking due to vibration. High-efficiency LED with tempered glass, with a scale plate for precise adjustment of the illumination angle. Excellent overall heat dissipation performance ensures component stability and the lifespan of the lamp.

Application Scene:Suitable for individual lighting, exterior lighting of historic building complexes; light outside lighting inside buildings; green landscape lighting; billboard lighting; lighting for specialized facilities such as medical culture.

Characteristic:

Product Consultation

Home >Product Center > LED Flood Light > OUGE-DT160W(XA) Round LED Flood Light

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Beam Angle
01	DC24V	36W	W	ON/OFF	8°、15°、30°、45°、60°
02	DC48V	36W	W	ON/OFF	8°、15°、30°、45°、60°
03	DC24V	48W	W	ON/OFF	8°、15°、30°、45°、60°
04	DC48V	48W	W	ON/OFF	8°、15°、30°、45°、60°
05	DC48V	36W	W	DMX512	8°、15°、30°、45°、60°
06	DC48V	48W	W	DMX512	8°、15°、30°、45°、60°
07	DC48V	36W	W+W	DMX512	8°、15°、30°、45°、60°
08	DC48V	48W	W+W	DMX512	8°、15°、30°、45°、60°
09	DC48V	36W	RGBW	DMX512	15°、25°、45°、60°

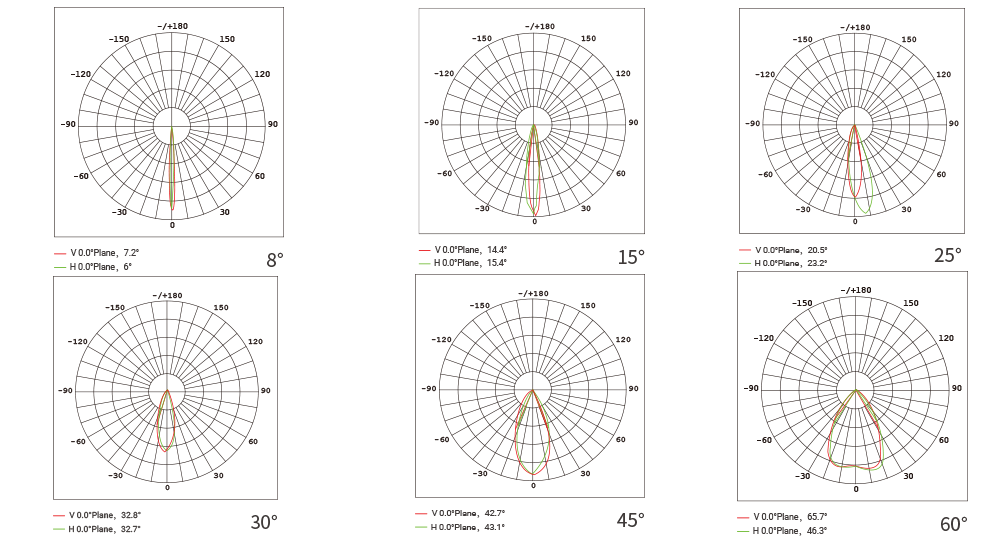

10	DC48V	48W	RGBW	DMX512	15°、25°、45°、60°
