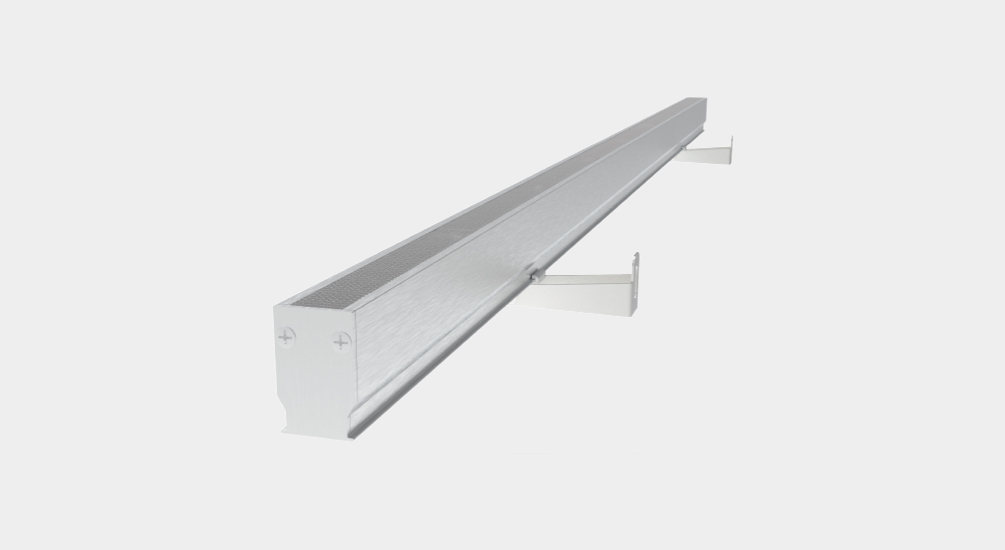

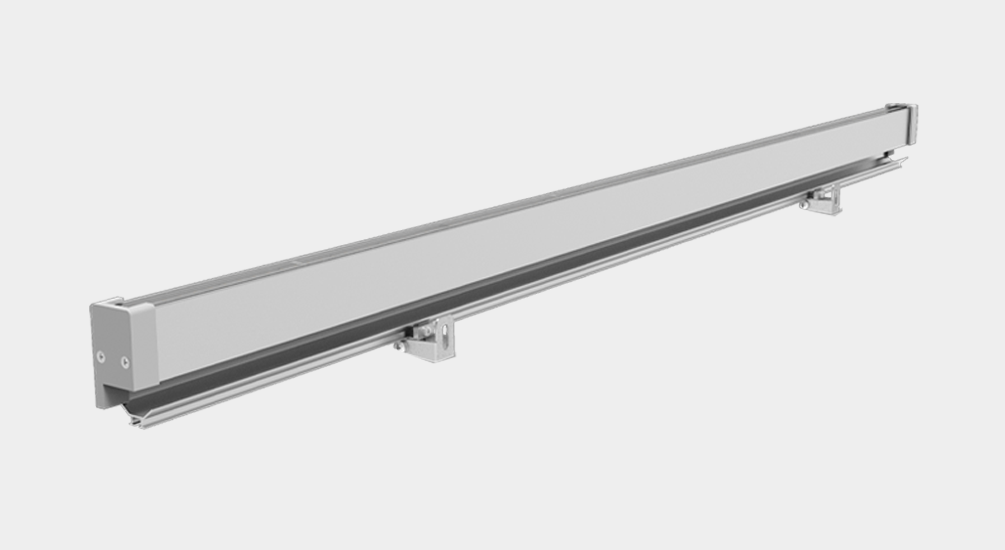

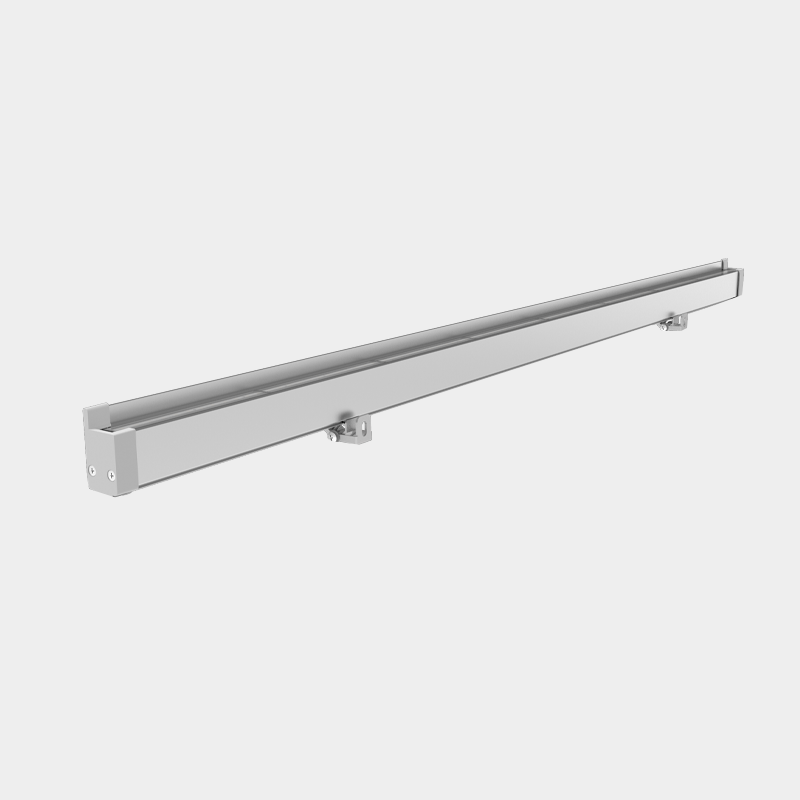

Crystal LED wall washer lights YD-XQY-14A-Hangzhou YD Illumination Co., Ltd

Description:• The protection level of the lamp reaches the highest IP68, and the product has a long service life. • Built-in professional optical lens for uniform light distribution. • Adjustable lighting angle for the fixture, easy for installation. • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.
Suitable for wall-washing lighting of buildings, bridges, etc.; flood lighting of steps in parks and squares; internal light penetration lighting of building; river, embankment, and bridge guardrail lighting; airports, subways, viaducts, overpasses to establish landmarks lighting; outdoor squares, landscapes and walls.

Characteristic:

Product Consultation

Home >Product Center > Crystal LED Wall Washer Lights > Crystal LED wall washer lights YD-XQY-14A

Security

Protection Grade:

IP68

Flame Retardant Grade：

V-0

UV Grade：

Surface shows no apparent changes （GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Configuration

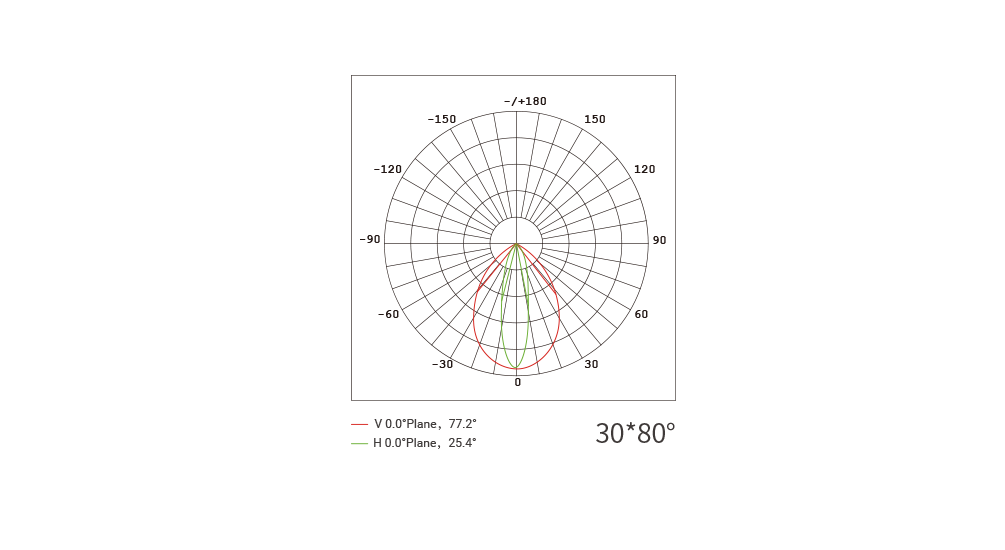

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam Angle
01	DC24V	9W	R\G\B\W...	ON/OFF	/	30°X80°
02	DC24V	12W	R\G\B\W...	ON/OFF	/	30°X80°
03	DC24V	12W	RGB	SPI	8	30°X80°
04	DC24V	15W	RGB+W	SPI	8	30°X80°
