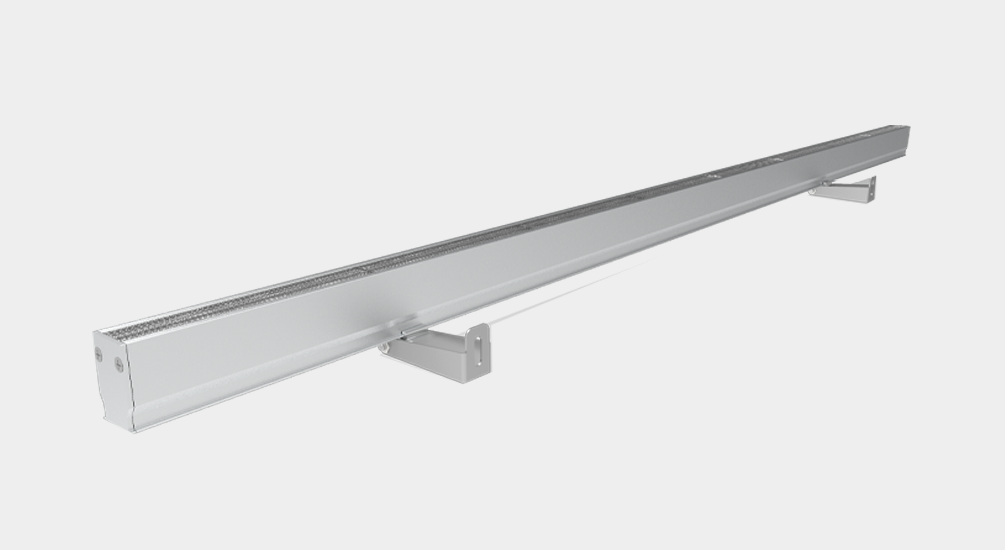

YD-XQ14(YA3) Crystal LED Wall Washer Lights
Main Performance:• The protection level of the lamp reaches the highest IP68, and the product has a long service life. • Built-in professional optical lens for uniform light distribution. • Adjustable lighting angle for the fixture, easy for installation. • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.
Application Scene:Suitable for wall-washing lighting of buildings, bridges, etc.; flood lighting of steps in parks and squares; internal light penetration lighting of building; outdoor squares, landscapes and walls.
Characteristic:
Product Consultation
Home >Product Center > Crystal LED Wall Washer Lights > YD-XQ14(YA3) Crystal LED Wall Washer Lights
Security
Protection Grade:
IP68
Flame Retardant：
V-0
UV Grade：
Surface shows no apparent changes（GB/T 16422.3-2014 ）
IK Grade：
IK10
Neutral Salt Spray：
48H
Anti-High And Low Temperature：
-40°C~+55°C / -40°F~+131°F
Product Certification ：
CE、FCC
Parameter
Serial Number: Voltage Power LED Color Control Method Pixel/m Beam angle
01 DC24V 15W R/G/B/W... ON/OFF / 20*80°
02 DC24V 12W RGB DMX512 8 30*80°
03 DC24V 18W RGB DMX512 4 30*80°
04 DC24V 15W RGB+W DMX512 8 30*80°
05 DC24V 24W RGB+W DMX512 4 30*80°
06 DC24V 12W RGB DMX512 8 30*80°
07 DC24V 15W RGB+W DMX512 8 30*80°
08 DC24V 12W RGB+W DMX512 8 30*80°

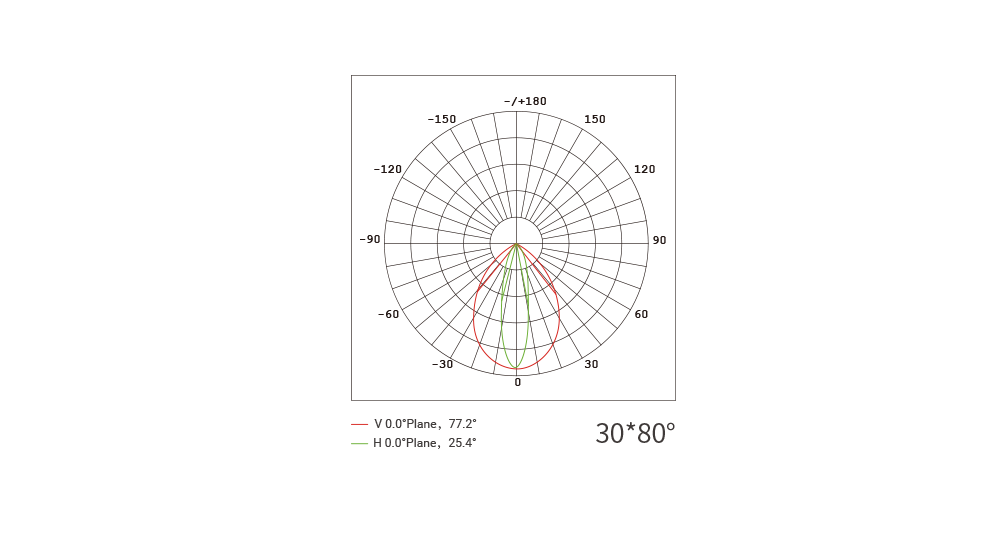

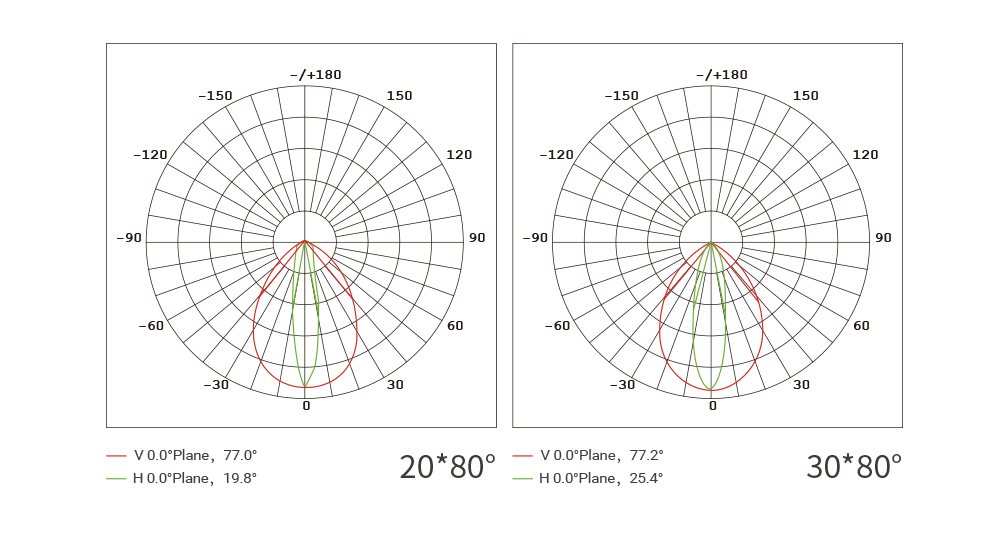

Luminosity Distribution
YD-XQ14(YA3) Crystal LED Wall Washer Lights

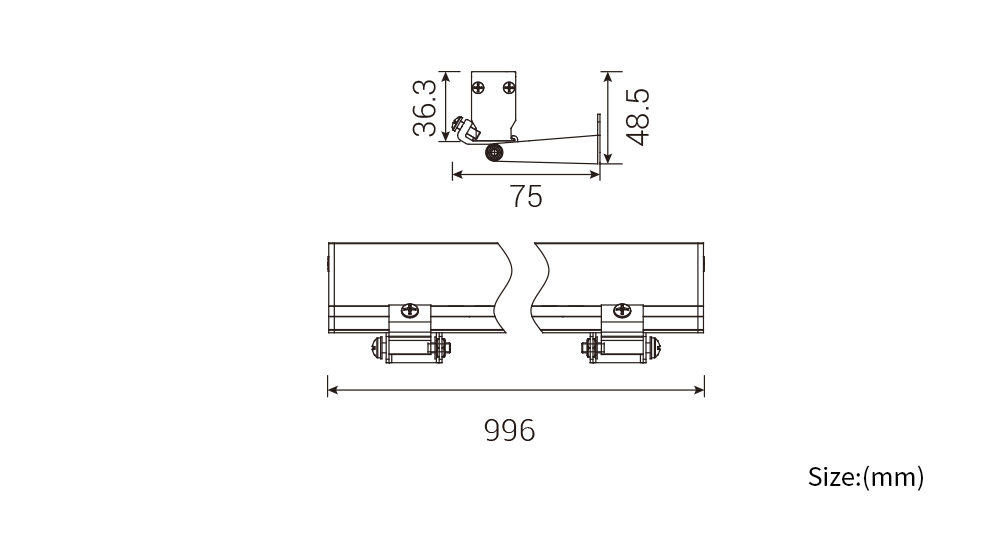

Product Size
YD-XQ14(YA3) Crystal LED Wall Washer Lights
