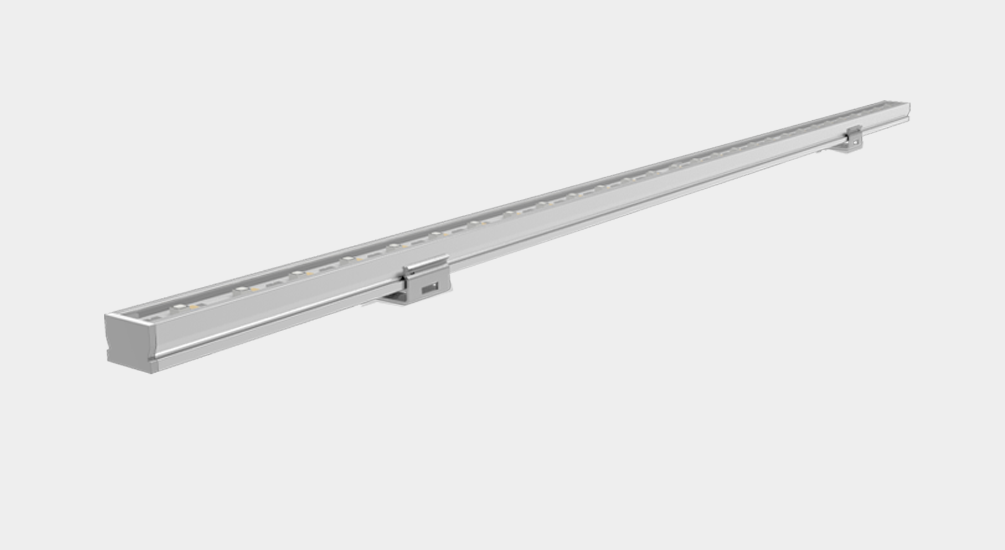

YD-XQ17(YA) Crystal LED Wall Washer Lights

Main Performance:• The protection level of the lamp reaches the highest IP68, and the product has a long service life. • Built-in professional optical lens for uniform light distribution. • Adjustable lighting angle for the fixture, easy for installation. • It has conventional, DC48V, RDM and constant power different series to meet the multiple requirements of outdoor lighting.

Application Scene:Suitable for wall-washing lighting of buildings, bridges, etc.; flood lighting of steps in parks and squares; internal light penetration lighting of building; outdoor squares, landscapes and walls.

Characteristic:

Product Consultation

Home >Product Center > Crystal LED Wall Washer Lights > YD-XQ17(YA) Crystal LED Wall Washer Lights

Security

Protection Grade:

IP68

Flame Retardant：

V-0

UV Grade：

Surface shows no apparent changes（GB/T 16422.3-2014 ）

IK Grade：

IK10

Neutral Salt Spray：

48H

Anti-High And Low Temperature：

-40°C~+55°C / -40°F~+131°F

Product Certification ：

CE、FCC

Parameter

Serial Number:	Voltage	Power	LED Color	Control Method	Pixel/m	Beam angle
01	DC24V	12W	RGB	DMX512	8	30*80°

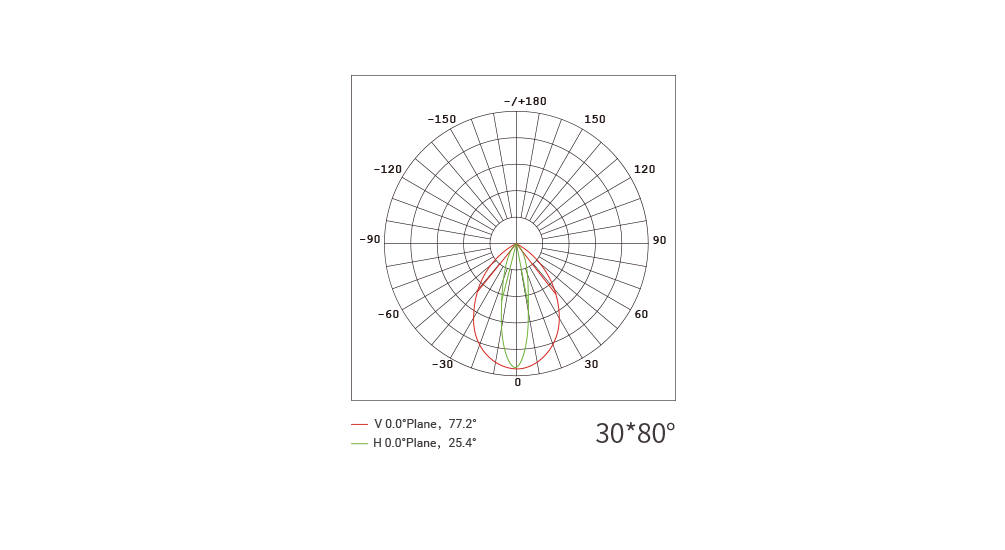

Luminosity Distribution

YD-XQ17(YA) Crystal LED Wall Washer Lights

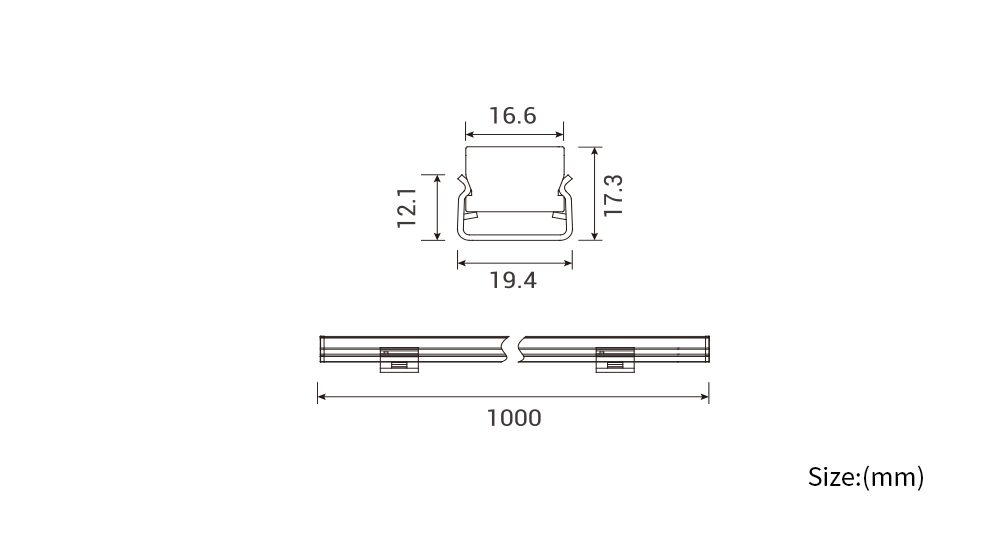

Product Size

YD-XQ17(YA) Crystal LED Wall Washer Lights
